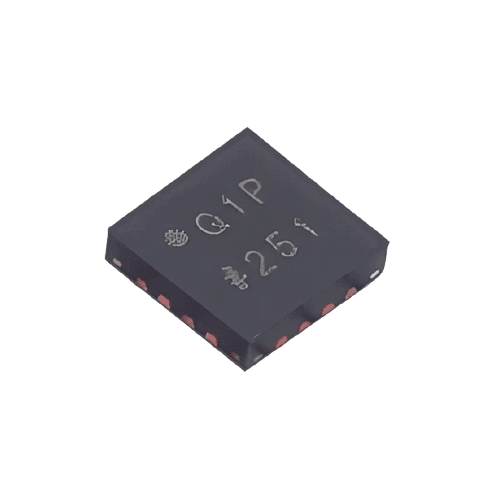

ADL5561ACPZ-R7 Differential Amplifier IC – 2.9GHz Low-Noise RF/IF ADC Driver
The ADL5561ACPZ-R7 is a high-performance differential amplifier specifically optimized for driving high-speed ADCs in RF and IF applications. With a bandwidth of up to 2.9GHz, this amplifier delivers excellent low-noise performance, high linearity, and wide dynamic range, making it a reliable choice for communication systems, satellite equipment, and RF instrumentation.

Engineered for Precision and Efficiency

Designed in a compact 16-lead LFCSP package, the ADL5561 ensures low distortion signal conversion and superior common-mode rejection for clean, accurate results. It provides flexible gain options and high output drive capability, allowing seamless integration in wireless infrastructure, test equipment, software-defined radios, and broadband front-end designs.

Technical Features:

  • Part Number: ADL5561ACPZ-R7

  • Type: Differential RF/IF Amplifier – ADC Driver

  • Frequency Range: DC to 2.9GHz

  • Gain Options: Configurable for design flexibility

  • Noise Performance: Low-noise, ideal for RF/IF applications

  • Linearity: High linearity for distortion-free ADC driving

  • Package: 16-LFCSP (Lead Frame Chip Scale Package)

  • Supply Voltage: 3.3V typical

  • Applications:

    • High-speed ADC driver

    • Wireless communication systems (3G, 4G, 5G)

    • Satellite receivers and RF front ends

    • Test and measurement equipment

    • Broadband SDR (Software Defined Radio) solutions

  • Condition: Brand New, Original
