About the Product

Efficient Cooling Solution for Bitmain APW3, APW7, and APW12 PSUs – Delta AFB0612EH Fan

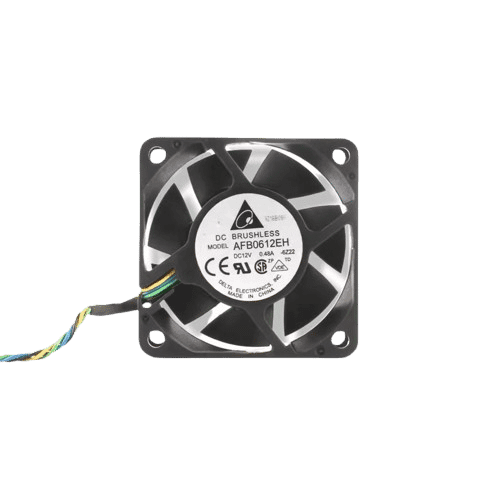

The Delta AFB0612EH 60x60x25mm cooling fan is a compact and high-performance solution designed for efficient heat dissipation in Bitmain APW3, APW7, and APW12 power supply units. Its slim profile and easy-to-install 2-wire connector make it ideal for PSU replacements or upgrades requiring stable airflow and dependable thermal management.

Built for Reliability and Long-Term Operation

Engineered with durable plastic housing and a dual ball-bearing design, the AFB0612EH offers long-lasting cooling performance and maintains optimal temperatures under continuous operation. This fan is an excellent choice for miners or professionals seeking a reliable PSU cooling upgrade.

Key Performance Features:

  • High Airflow: 38.4 CFM ensures rapid and efficient cooling

  • Static Pressure: 0.544 in H₂O enhances airflow through dense PSU environments

  • Noise Level: Operates at 46.5 dB(A), balancing performance and sound

  • RPM: High-speed 6800 RPM for powerful heat dissipation

  • Locked Rotor Protection: Built-in safety to prevent damage during obstruction

  • Operating Range: 12VDC (supports 4V–13.8V input) with 0.380A current rating

  • Rated Lifespan: 70,000 hours at 40°C – designed for long-term operation

Technical Specifications:

  • Dimensions: 60mm x 60mm x 25mm

  • Bearing Type: Dual Ball Bearing

  • Fan Type: Tubeaxial

  • Termination: 2-wire leads

  • Operating Temperature: -10°C to 70°C (14°F to 158°F)

  • Power Consumption: 4.56W

  • Certifications: CE, CSA, UL, VDE approved

  • Weight: 80g (0.176 lb)

  • Base Part Number: AFB0612
