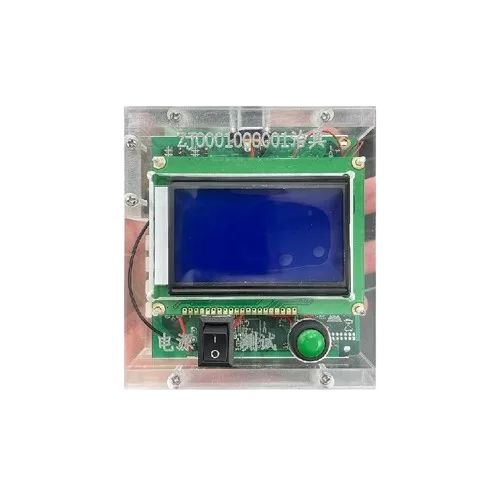

Antminer Universal ASIC Test Fixture – Advanced Hashboard Diagnostic Tool with LCD Screen (Version 2.1)
Reliable Hashboard Repair and Maintenance for All Antminer Series
The Antminer Universal Hashboard Test Fixture is a powerful and versatile tool designed to diagnose faulty ASIC chips quickly and accurately. Compatible with a wide range of Antminer models—including the latest S21, T21, and Hydro series—this device is an essential addition to any miner repair technician’s toolkit.
Efficient Testing with Wide Compatibility
Equipped with four 18-pin data connectors and a 4-pin PSU port compatible with APW9, APW9+, and APW12 power supplies, this fixture integrates smoothly into any repair setup. A 12V DC input allows external power support, especially for older or specific models that require independent power.
Supported Models Include:
Classic Models: S9, S9i, S9j, DR5, D7, D9, L7, KA3, HS3
Mid-Generation: S15, T15, S11, S17, S17+, S17e, S17pro, T17, T17+, T17e
Next-Gen & Hydro: S19, S19+, S19j, S19j+, S19jpro, S19jpro+, S19pro, S19pro+, S19XP, S19XPhyd, S19hyd, S19eXP hyd, T19, T19hyd
Latest Models: S21, T21, S21hyd, S21pro
Real-Time Chip Status with LCD Display
The built-in LCD screen provides real-time feedback, enabling fast detection and precise chip-level troubleshooting. This reduces downtime and boosts efficiency across mining operations.
Key Features of the Antminer Universal Test Fixture:
| Feature | Details |
|---|---|
| Display | LCD screen for real-time diagnostics |
| Data Connectors | Four 18-pin connectors for hashboard testing |
| PSU Compatibility | 4-pin connector for APW9, APW9+, APW12 |
| Power Input | 12V DC connector for external power sources |
| Compatibility | All Antminer S and T series, including Hydro models and S21/T21 series |
| Function | Accurately detect faulty ASIC chips for repair and maintenance |
Note: Ensure proper PSU setup and always switch off power when not in use to avoid hardware damage.
