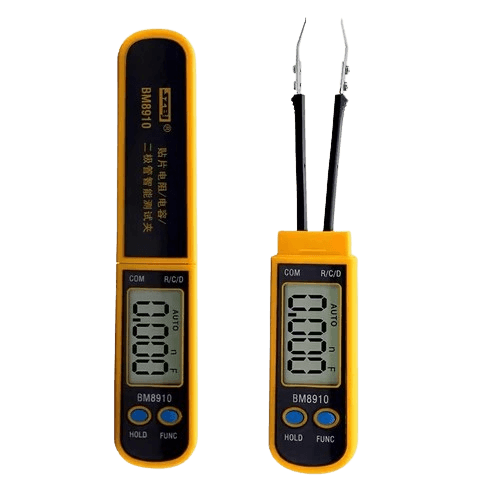

Smart SMD Test Tweezers for Fast, Accurate Electronics Diagnostics
Simplify SMD testing and crypto miner diagnostics with these handheld smart tweezers—an essential tool for electronics repair technicians. Designed to measure resistors, capacitors, and diodes with high precision, this portable device combines auto-detection with manual control to speed up troubleshooting on ASIC miner hash boards and PCBs.
Features You Can Count On:
✔ Auto & Manual Test Modes – Automatically identifies components or manually switch using the “FUNC” button
✔ High-Precision LCD Display – 1.5″ screen with 2999-count resolution, data hold, and overload protection
✔ Wide Testing Range – Supports resistors (up to 30MΩ), capacitors (up to 30mF), and diode testing (2.8V open circuit)
✔ Crypto Mining Ready – Ideal for pinpointing issues in hash boards and miner circuitry
✔ Battery Efficient – Auto power-off after 10 minutes of inactivity (CR2032 battery powered)
✔ Compact & Durable – Lightweight, pocket-sized design with shock-resistant housing
Whether you’re a miner technician, repair engineer, or electronics hobbyist, these SMD tweezers deliver reliable and accurate testing in the field or lab.
Smart SMD Test Tweezers – Specifications
| Feature | Specification |
|---|---|
| Test Modes | Resistance, Capacitance, Diode |
| Resistance Range | 3kΩ – 30MΩ (±1–2% accuracy) |
| Capacitance Range | 3nF – 30mF (±3–5% accuracy) |
| Diode Test | 2.8V open circuit, 1mA test current |
| Display | 1.5″ LCD (2999 max count) |
| Power Source | 3V CR2032 (battery not included) |
| Auto Shutoff | After 10 minutes of inactivity |
| Operating Conditions | 0–40°C (32–104°F), <80% relative humidity |
