About the Product

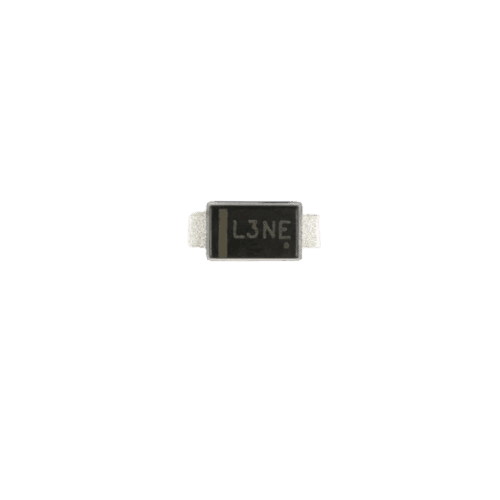

MBR230LSFT1G 2A 30V Schottky Power Rectifier for Antminer L7 Hash Board

Upgrade your Antminer L7 hash board performance with the MBR230LSFT1G 2A 30V Schottky Power Rectifier. Designed for high-frequency rectification, freewheeling, and polarity protection, this compact SMD diode ensures efficient power conversion and reliable operation.

Key Features:

  • High-Efficiency Rectification: Low forward voltage ensures minimal power loss.

  • Wide Operating Temperature: -55°C to 125°C for reliable performance under demanding conditions.

  • Durable Construction: UL 94 V-0 epoxy for enhanced safety and reliability.

  • Compact SMD Package: SOD-123F design for space-efficient mounting.

  • Versatile Applications: Ideal for AC-DC and DC-DC converters, reverse battery protection, “Oring” of multiple supply voltages, and portable/battery-powered devices.

Technical Specifications:

FeatureSpecification
Manufactureronsemi
TechnologySchottky
DC Reverse Voltage (Vr Max)30 V
Average Rectified Current (Io)2 A
Forward Voltage (Vf Max) @ If430 mV @ 2 A
Reverse Leakage Current @ Vr1 mA @ 30 V
Recovery SpeedFast Recovery ≤ 500 ns, > 200 mA (Io)
Mounting TypeSurface Mount
Package / CaseSOD-123F
Operating Junction Temperature-55°C ~ 125°C
Product StatusActive
