About the Product

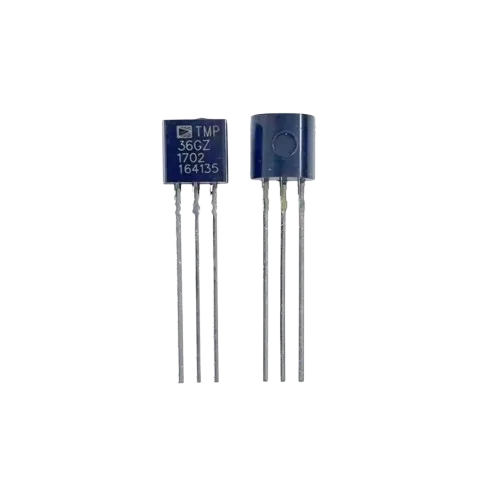

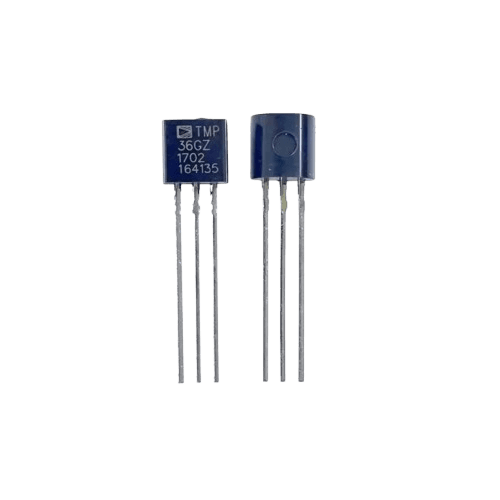

Original TMP36GT9Z / TMP36GZ – High-Accuracy Analog Temperature Sensor, TO-92 Package, 10mV/°C, 2.7V–5.5V Supply Range for Industrial Electronics

The TMP36GT9Z / TMP36GZ is a precision low-voltage temperature sensor that provides a linear 10mV/°C output scale directly proportional to temperature in Celsius. Unlike resistive sensors such as thermistors, the TMP36 delivers a calibrated voltage output without requiring external calibration or complex signal conditioning.

Operating across a 2.7V to 5.5V supply voltage range, this sensor offers ±2°C accuracy over the industrial temperature range, making it suitable for embedded systems, industrial electronics, HVAC controls, power supply monitoring, and portable devices.

Packaged in the TO-92 form factor, the TMP36 is easy to integrate into PCBs and breadboards, making it ideal for both prototype development and production designs.

Key Features

  • Part Number: TMP36GT9Z / TMP36GZ

  • Type: Analog Temperature Sensor

  • Package: TO-92 (through-hole)

  • Supply Voltage Range: 2.7V – 5.5V

  • Output Scale: 10mV/°C (linear, calibrated in Celsius)

  • Accuracy: ±2°C (typical), ±4°C (max)

  • Output Voltage at 25°C: ~750mV

  • Low Quiescent Current: 50 µA (typical)

  • Temperature Range: –40°C to +125°C

  • Calibration: Factory-calibrated, no external components required

  • Condition: 100% Original, Brand New

Applications

  • Industrial & Embedded Temperature Sensing

  • Power Supply & Battery Monitoring

  • HVAC (Heating, Ventilation & Air Conditioning) Systems

  • Consumer Electronics & Home Appliances

  • Robotics & Environmental Monitoring

  • Portable Devices (low power operation)
