BitHash 🎯 Product Overview

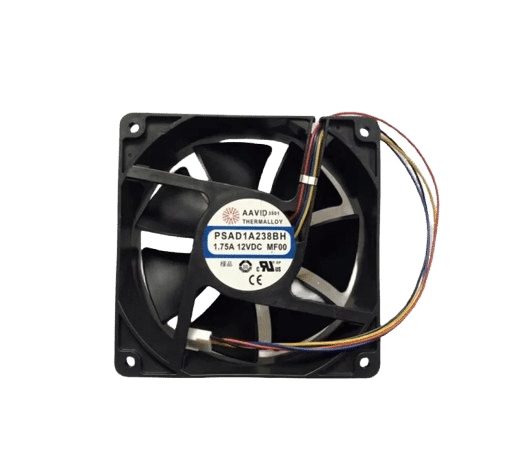

AAVID PSAD1A238BH – a high-performance 120×120×38 mm DC brushless fan designed to deliver robust airflow and reliable cooling, particularly suited for ASIC mining hardware such as Antminer S9, V9, Z9, and related server environments
⚙️ Key Features & Benefits
Powerful Performance: Operates at 12 V DC, drawing 1.75 A to produce high-speed airflow (~6000 RPM) for effective temperature control
Durable Design: Constructed with ball bearings to ensure long service life and sustained performance under continuous load
Smart Connectivity: Equipped with a 4-wire PWM connector, supporting speed control and monitoring for advanced thermal management
Compact & Efficient: The square server form factor (120 mm square frame) maximizes airflow while minimizing vibration and noise
✅ Technical Specifications
| Specification | Details |
|---|---|
| Model Number | PSAD1A238BH |
| Manufacturer | AAVID |
| Dimensions | 120 × 120 × 38 mm |
| Voltage | 12 V DC |
| Current | 1.75 A |
| Bearing Type | Ball Bearing |
| Connector | 4-Wire (PWM speed control) |
| Speed (approx.) | ~6000 RPM |
| Application Use | Antminer miners (S9, V9, Z9), server racks |
| Condition | Brand New |
