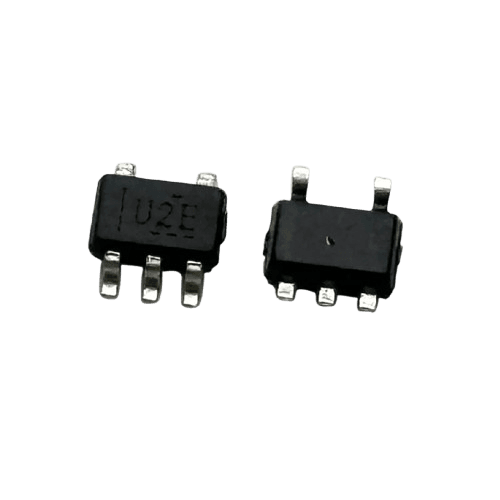

SN74AUP1T34DCKR U2E Voltage Level Shifter for Antminer & Iceriver Hash Boards
The SN74AUP1T34DCKR U2E is a high-performance voltage level shifter IC designed for Antminer S19, S21, T21, L7 series and Iceriver KS3M, KS3L, KS5L hash boards. With two independent configurable power rails, this versatile chip provides optimal voltage conversion, stable operation, and enhanced reliability for your mining rigs.
Optimize Power and Performance
Schmitt trigger input with high noise immunity ensures smooth and reliable voltage shifting
Operates across a wide supply voltage range of 0.8V to 3.6V, adaptable to various mining applications
Low dynamic power consumption and enhanced ESD protection
Compact and efficient design for hash board repairs and upgrades
SN74AUP1T34DCKR Technical Features
| Feature | Description |
|---|---|
| Independent Power Rails | VccA: 0.8V – 3.6V, VccB: 0.8V – 3.6V |
| Schmitt Trigger Input | High noise immunity |
| Dynamic Power Consumption | Very low |
| ESD Protection | Enhanced |
| Size | 2.15mm × 1.4mm × 1mm |
| Low Level Output Current | Maximum 6mA |
| High Level Output Current | Maximum -6mA |
