About the Product

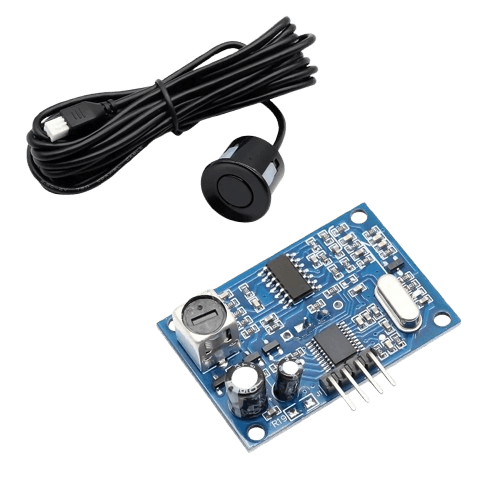

High-Precision JSN-SR04T Waterproof Ultrasonic Ranging Module
The JSN-SR04T Ultrasonic Ranging Module provides accurate and stable distance measurements, making it perfect for various applications including security systems, industrial control, and robotics. Compatible with popular open-source platforms like Arduino, this module stands out with its waterproof design, low power consumption, and excellent anti-interference performance.

Pack Contents: 5 units of the JSN-SR04T ultrasonic sensor module.

Key Features & Specifications:

Parameter Specification
Operating Voltage DC 5V
Static Working Current 5mA
Total Working Current 30mA
Acoustic Frequency 40kHz
Detection Distance Up to 6 meters
Blind Zone 25cm
Module Size 41mm × 28.5mm
Resolution Approximately 0.5 cm
Detection Angle Less than 50 degrees
Operating Temperature -10°C to 70°C
Storage Temperature -20°C to 80°C
