About the Product

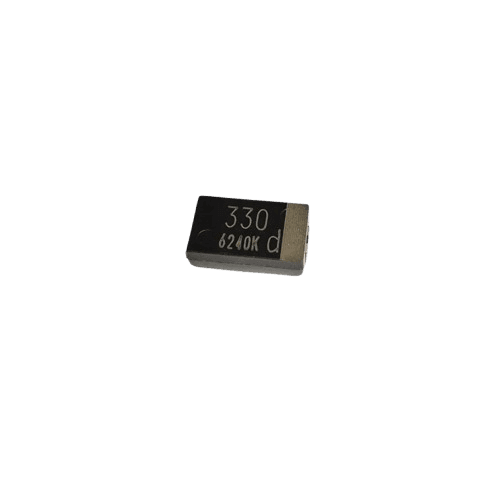

High-Performance 330µF SMD 6240k Polymer Tantalum Capacitor for Antminer L3+ Hashboard

Designed for high-temperature applications, this 330µF 6240k SMD polymer tantalum capacitor is ideal for PSU hash boards and critical voltage domains. It ensures reliable performance and durability during maintenance and repair of Antminer L3+ hashboards.

Technical Features:

  • Product Category: Polymer Tantalum Capacitors

  • Series: T520

  • Capacitance: 330µF

  • Voltage Rating (DC): 2.5V

  • Tolerance: ±0.2

  • ESR: 12 mΩ

  • Case Size: 2312 (6.0 × 3.2 × 1.8 mm)

  • Manufacturer Case Code: L Case

  • Operating Temperature Range: -55°C to +105°C

  • Dissipation Factor (DF): 8

  • Leakage Current: 82.5 µA

  • Ripple Current: 3500 mA

  • Termination Style: SMD

  • Type: Standard Polymer Electrolytic

  • Moisture Sensitivity: Yes

  • Factory Pack Quantity: 1000 pcs

  • Unit Weight: 300 mg
