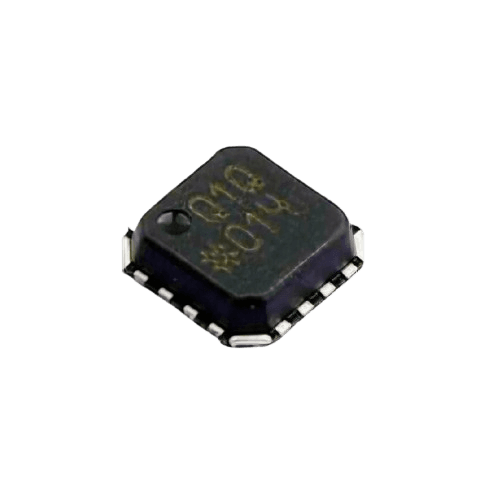

ADL5562ACPZ-R7 Differential Amplifier IC – 3.3GHz Low-Noise RF/IF ADC Driver LFCSP-16
The ADL5562ACPZ-R7 is a high-performance differential RF/IF amplifier IC designed to deliver excellent bandwidth, low noise, and high linearity for next-generation communication and signal processing systems. Operating up to 3.3GHz, this amplifier is optimized for use as a high-speed ADC driver, ensuring accurate signal conditioning for demanding RF front-end designs.

Reliable Performance for Advanced Applications
Engineered in a 16-lead LFCSP package, the ADL5562 combines low-distortion architecture with a wide dynamic range, making it ideal for wireless infrastructure (3G/4G/5G base stations), satellite communications, instrumentation, and RF test equipment. Its differential input/output design enhances common-mode rejection and minimizes distortion, guaranteeing stable and clean performance across a wide range of frequencies.

Technical Features:

  • Part Number: ADL5562ACPZ-R7

  • Type: Differential Amplifier / ADC Driver

  • Frequency Range: DC to 3.3GHz

  • Gain Options: Adjustable gain configuration

  • Noise Figure: Low, optimized for RF/IF stages

  • Linearity: High linearity for distortion-free signals

  • Package: 16-LFCSP (Lead Frame Chip Scale Package)

  • Supply Voltage: 3.3V typical

  • Applications:

    • High-speed ADC drivers

    • Wireless base stations (3G, 4G, 5G)

    • Satellite communication systems

    • Software-defined radios (SDR)

    • RF/IF signal chains & test equipment

  • Condition: Brand New, Original
