About the Product

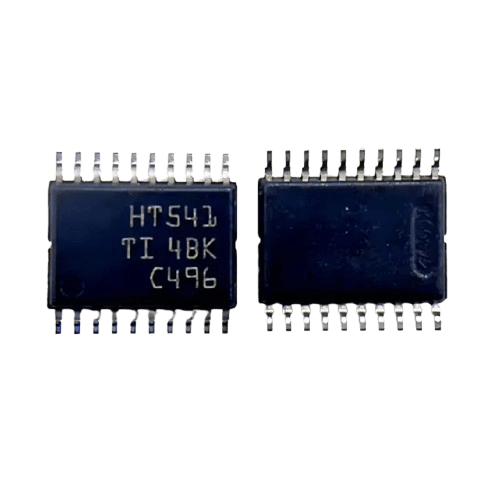

SN74HCT541PWR 8-Channel Buffer Driver IC – Tri-State Output, 4.5V-5.5V CMOS Logic, 20-TSSOP (Industrial Grade)
The SN74HCT541PWR is a high-performance 8-channel buffer/line driver IC designed to improve signal integrity in complex electronic systems. Operating with a supply voltage range of 4.5V to 5.5V, this IC delivers reliable CMOS-compatible logic levels, making it suitable for interfacing with microcontrollers, processors, and digital logic circuits. Its tri-state outputs allow multiple devices to share the same data lines without signal interference, ensuring clean and controlled communication.

Robust and Industrial-Grade Performance
Housed in a 20-pin TSSOP package, the SN74HCT541PWR provides compact integration for space-constrained designs. With two active-low output enable pins, the device offers flexible control over individual channels, making it ideal for use in memory addressing, bus interfacing, and data buffering applications. Its industrial-grade design ensures dependable performance across a wide operating temperature range, making it well-suited for embedded systems, ASIC miner control boards, industrial electronics, and communication equipment.

Technical Features

  • Part Number: SN74HCT541PWR

  • Type: 8-Channel Buffer/Line Driver with Tri-State Outputs

  • Logic Family: HCT (High-Speed CMOS, TTL-Compatible)

  • Supply Voltage Range: 4.5V – 5.5V

  • Output Type: 3-State (High, Low, High-Z)

  • Output Current Drive: ±6mA

  • Propagation Delay: Low for high-speed applications

  • Package: 20-TSSOP (Thin Shrink Small Outline Package)

  • Key Benefits:

    • High-speed data transfer with minimal distortion

    • Tri-state output for bus-sharing capability

    • CMOS logic compatible with TTL inputs

    • Compact package for efficient PCB design

  • Applications: Data buffering, memory interfacing, microcontroller/processor bus systems, ASIC miner control board repair, industrial automation

  • Condition: New Original
