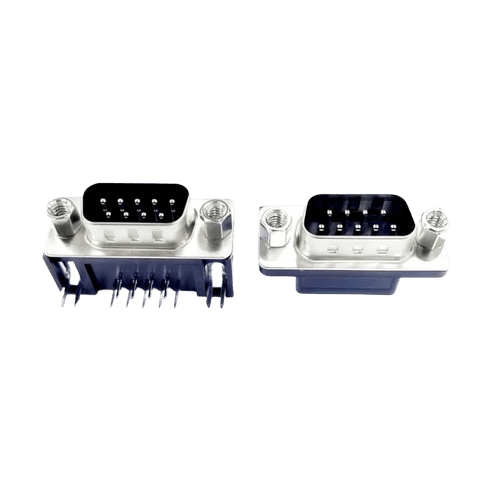

DS1037-09MNAKT74-0CC 9-Pin Male D-Sub Connector – Right Angle 3A THT Mount

High-Reliability 9-Pin D-Sub Male Connector for Industrial and Communication Systems

9-Pin Male D-Sub Connector designed for industrial automation, communication devices, and security systems
Right-angle through-hole (THT) mount for secure and stable PCB integration
UNC 4-40 screw-lock mechanism provides vibration-resistant and secure connections
Wide operating temperature range: -40°C to +105°C for harsh environment applications
3A current rating per contact ensures reliable power and signal delivery
Low contact resistance (≤15mΩ) for consistent signal integrity
Tin-plated double-row contacts offer long-term corrosion resistance
Standard 2.77mm pitch ensures compatibility with common D-Sub interfaces

Ideal for PLC systems, CCTV wiring, and network hardware installations

Feature	Specification
Connector Type	9-Pin Male D-Sub (Right Angle)
Mounting Style	Through-Hole (THT)
Current Rating	3A per Contact
Contact Resistance	≤15mΩ
Locking Mechanism	UNC 4-40 Screw
Operating Temp.	-40°C to +105°C
Pitch	2.77mm
Material	Black Metal Shell, Tin-Plated Contacts
