Product Overview

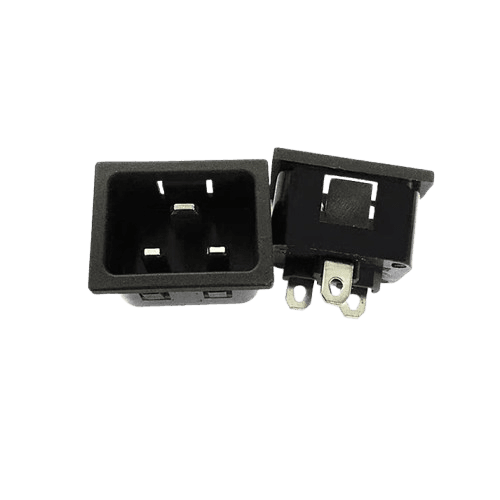

C19 Power Socket for Whatsminer PSUs – 16A 250V AC Replacement Connector
Maintain reliable power delivery to your Whatsminer mining rig with this high-performance C19 16A power socket. Designed to replace P21, P221, and P222 series PSUs, it supports 250V AC at 16A—ideal for high-demand mining setups. Welded terminals ensure strong conductivity, secure connections, and lasting durability.

🔧 Key Features

• Mining-Grade Construction – Pure copper contacts for superior conductivity and thermal efficiency

• Welded Terminal Design – Prevents loosening under constant load and vibration

• Certified Safety – 2000V AC dielectric strength and ≥100MΩ insulation resistance

• Precision Fit – 5–30N insertion force ensures a snug, reliable connection

• Corrosion-Resistant Materials – Built to last in high-humidity or dusty environments

  Technical Specifications

  Feature	Specification
  Model	C19 Power Socket
  Rated Current	16A
  Rated Voltage	250V AC
  Connection Type	Welded
  Insulation Resistance	≥100MΩ
  Dielectric Strength	≥2000V AC/min
  Insertion Force	5–30N
  Compatibility	Whatsminer P21, P21E, P21D, P221B, P221C, P222B, P222C PSU
