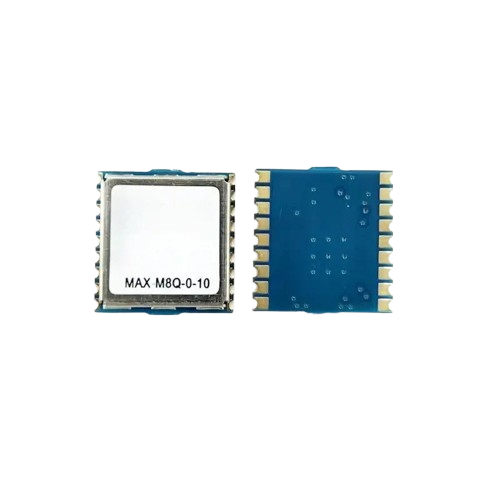

MAX-M8Q-0-10 – High-Precision Multi-Constellation GNSS Receiver
The MAX-M8Q-0-10 is a high-performance GNSS module supporting GPS, GLONASS, Galileo, BeiDou, and QZSS for exceptional positioning accuracy across challenging environments such as urban canyons, remote areas, and high-dynamic applications.

With -167 dBm tracking sensitivity and multi-constellation fusion, it delivers reliable location data even in weak-signal conditions. Its low 23 mA power consumption and 2.7V–3.6V wide voltage range make it ideal for battery-powered devices like drones, IoT asset trackers, and wearable tech. Engineered for durability, it operates flawlessly between -40°C to +85°C.

Key Advantages:
✔ Multi-GNSS Support – Concurrent reception of GPS, GLONASS, Galileo, BeiDou, and QZSS
✔ Weak-Signal Capability – Reliable tracking at -167 dBm sensitivity
✔ Easy Integration – I²C and UART interfaces with NMEA output (STM32/ESP32 compatible)
✔ Compact & Rugged – 18-pin SMD package for space-constrained designs
✔ Wide Temperature Range – Stable performance from -40°C to +85°C

Technical Specifications:

• Supported Systems: GPS, GLONASS, Galileo, BeiDou, QZSS

• Sensitivity: -167 dBm (Tracking)

• Power Consumption: 23 mA (Tracking)

• Voltage Input: 2.7V–3.6V

• Operating Temperature: -40°C to +85°C

• Interfaces: I²C, UART

• Output Protocol: NMEA (Standard GPS Data)

• Package: 18-pin SMD (Surface-Mount)
