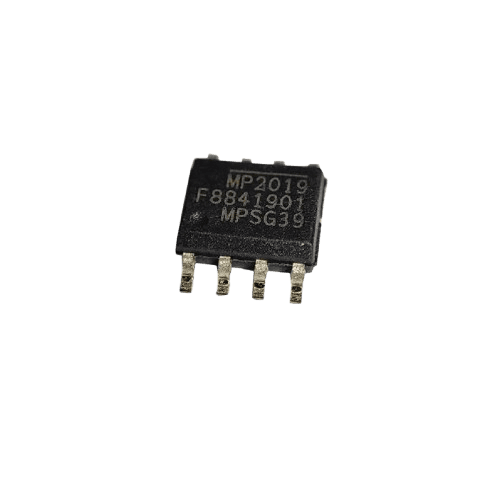

MP2019GN LDO Voltage Regulator for Antminer & Iceriver Hash Boards
The MP2019GN is a high-quality LDO voltage regulator designed for hash board and power supply maintenance. Packaged in SOP8, this authentic chip provides reliable, adjustable output voltage regulation, ensuring stable and efficient power for your mining hardware.
Optimize Power Management
-
Adjustable output voltage range: 1.2V to 15V
-
Maximum input voltage: 40V
-
Output current: 300mA with low quiescent current (10µA)
-
Compact and efficient design for hash board and PSU repair
MP2019GN Technical Features
| Feature | Specification |
|---|---|
| Product Category | LDO Voltage Regulators |
| Mounting Style | SMD / SMT |
| Package / Case | SOIC-8 |
| Output Voltage | Adjustable (1.2V – 15V) |
| Output Current | 300 mA |
| Number of Outputs | 1 Output |
| Polarity | Positive |
| Quiescent Current | 10 µA |
| Input Voltage MAX | 40 V |
| Input Voltage MIN | 3 V |
| Output Type | Adjustable |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +125°C |
| Dropout Voltage | 420 mV (Max 550 mV) |
| Series | MP2019 |
| Type | Linear Regulator |
| PSRR / Ripple Rejection | 51 dB |
| Voltage Regulation Accuracy | 0.02 |
| Line Regulation | 1 mV |
| Load Regulation | 1 mV |
| Moisture Sensitive | Yes |
| Power Dissipation (Pd) | 2.5 W |
| Subcategory | PMIC – Power Management ICs |
| Unit Weight | 0.009150 oz |
