BitHash Product Overview :
-

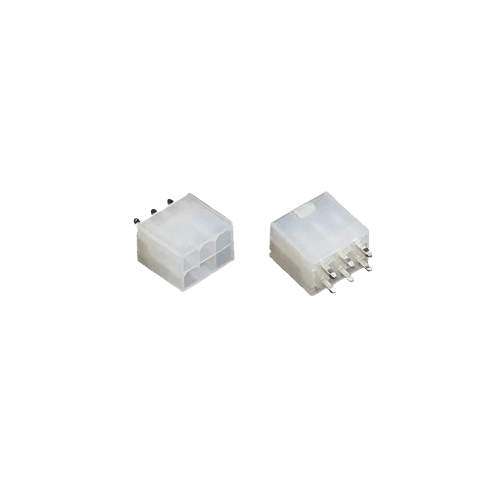

Reliable and secure power connection with the 5569 4.2mm female 6-pin vertical connector
-
Ideal for powering Antminer, Whatsminer, and other electrical devices
-
Provides a secure fit and high temperature resistance
-
Exceptional reliability for safe power transmission
-
Fully insulated design offers added safety and protection
-
Easy to install, suitable for residential, commercial, and industrial applications
-
Robust design ensures superior performance and long-lasting use
Power Socket 6p 5569 Vertical Features Table:
| Category | Connectors, Interconnects |
|---|---|
| Rectangular Connectors | Headers, Male Pins |
| Package | Tray |
| Part Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch – Mating | 0.165″ (4.20 mm) |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing – Mating | 0.165″ (4.20 mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded – 4 Wall |
| Mounting Type | Through Hole, Vertical |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length – Post | 0.130″ (3.30 mm) |
| Insulation Height | 0.394″ (10.00 mm) |
| Contact Shape | Square |
| Contact Finish – Mating | Tin |
| Contact Finish Thickness – Mating | 100.0 µin (2.54 µm) |
| Contact Finish – Post | Tin |
| Contact Material | Brass |
| Insulation Color | Transparent |
| Contact Finish Thickness – Post | 100.0 µin (2.54 µm) |
