Product Overview:

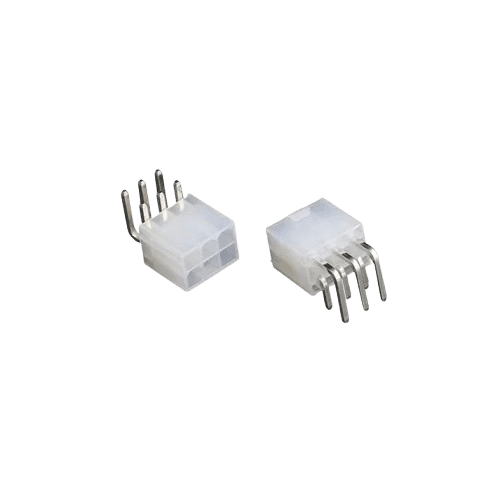

  • 5569 4.2mm female 6-pin right-angle power connector

  • Designed for tight spaces and confined areas

  • Slim, right-angle design enables quick and easy installation

  • Ideal for securing energy and data connections, especially DC power

  • 4.2mm inner diameter with 6 pins ensures strong, reliable connection

  • Durable construction suitable for tough applications

  • Provides long-lasting performance

5569 Header 6p Technical Features:

CategoryConnectors, Interconnects
Rectangular ConnectorsHeaders, Male Pins
PackageTray
Part StatusActive
Connector TypeHeader
Contact TypeMale Pin
Pitch – Mating0.165″ (4.20 mm)
Number of Positions6
Number of Rows2
Row Spacing – Mating0.165″ (4.20 mm)
Number of Positions LoadedAll
StyleBoard to Cable/Wire
ShroudingShrouded – 4 Wall
Mounting TypeThrough Hole, Right Angle
TerminationSolder
Fastening TypeLocking Ramp
Contact Length – Post0.130″ (3.30 mm)
Insulation Height0.394″ (10.00 mm)
Contact ShapeSquare
Contact Finish – MatingTin
Contact Finish Thickness – Mating100.0 µin (2.54 µm)
Contact Finish – PostTin
Contact MaterialBrass
Insulation ColorTransparent
Contact Finish Thickness – Post100.0 µin (2.54 µm)
