Product Overview

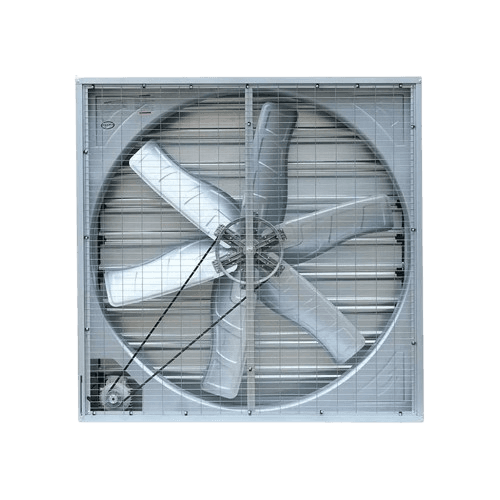

High-Power 1100mm Negative Pressure Ventilation Fan for Mining Farms

Enhance your crypto mining environment with our robust 1100mm negative pressure fan, available in both 220V and 380V versions. Engineered to tackle ventilation and cooling challenges in mining farms, this fan effectively ventilates air, removes odors, controls humidity, and ensures workplace safety.

Designed for optimal performance, the fan boasts strong suction power, energy efficiency, and eco-friendly materials—making it an ideal solution for mining farms and warehouses.


Specifications of 1100mm Negative Pressure Fan

Feature Specification
Dimensions (L×W×H) 110 × 110 × 35 cm
Air Flow 20,000 CFM
Air Volume 34,000 m³/h
Power Consumption 550 W
Applicable Area 150 – 180 m²
Body Material Anti-rust thick galvanized sheet
Fan Blade Material Anti-rust galvanized sheet / Stainless Steel
Motor Type Pure Copper
Rated Voltage 220V / 380V
Noise Level ≤ 70 dB
Available Sizes 600, 800, 900, 1000, 1100, 1220, 1380, 1530 mm
