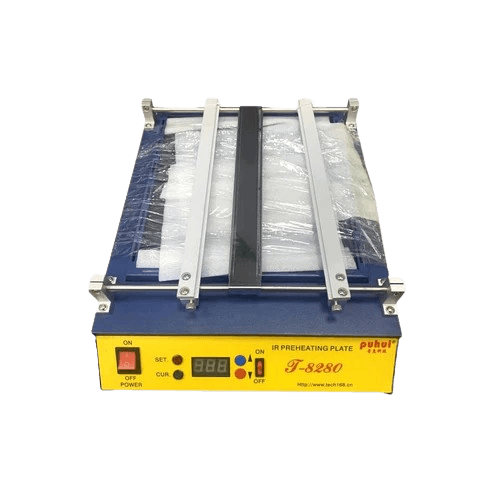

BitHash T-8280 IR PCB Preheating Plate – High-Power Infrared Station for Hashboard Repair
The T-8280 Infrared Preheating Station is designed for professional electronics repair, especially in crypto miner hashboard and control board maintenance. With a large working surface and 1600W of total power, it ensures efficient, even heating for delicate PCB components. Its adjustable temperature range and sturdy build make it a reliable tool for pre-soldering and desoldering tasks.
Features:
-
✔ Powerful Infrared Heating – 1500W IR plate for uniform heat distribution
-
✔ Adjustable Temperature Control – 0–450°C for various PCB repair needs
-
✔ Large Working Area – 410x316mm bench, suitable for large hashboards
-
✔ High Compatibility – Supports 110V or 220V AC input
-
✔ Complete Kit – Includes temp sensor, PCB holder, and power cable
Specifications:
| Feature | Specification |
|---|---|
| Model | T-8280 |
| Category | Infrared Pre-heating Station |
| Rated Voltage/Frequency | AC 220-230V / AC 110V (50/60Hz) |
| Total Power | 1600W |
| Preheating Plate Power | 1500W |
| Preheating Plate Size | 280 x 270 mm (11.0 x 10.6 in) |
| Work Bench Size | 410 x 316 mm (16.1 x 12.4 in) |
| Temperature Range | 0–450°C |
